PV-EdgeGrab

$375.00

S-5!’s new EdgeGrab™ is specifically designed to be used in conjunction with our patented S-5-PV Kit for solar array end conditions.

  • 75 pieces per box

Out of stock

SKU: pv-edge-grab Category:

Description

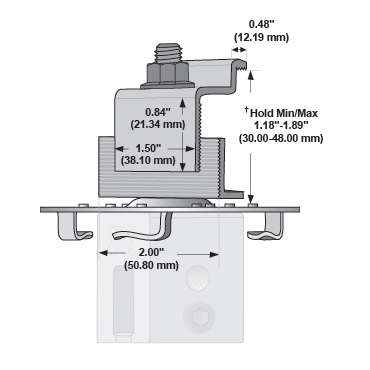

The EdgeGrab accommodates PV frame thicknesses of 30–48 mm (if the L-flange is positioned below the stud’s hex nut) and 34–51 mm (if the L-flange is positioned above the stud’s hex nut).

EdgeGrab uses the same S-5-PV Kit base assembly as the universal PV grab and will work on most exposed-fastened and corrugated metal roofs.

S-5!®

The Right Way!

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s 5 logo 1

Additional information

Weight 17 lbs
Dimensions 8 × 14 × 4 in
