S-5-H90

$159.00

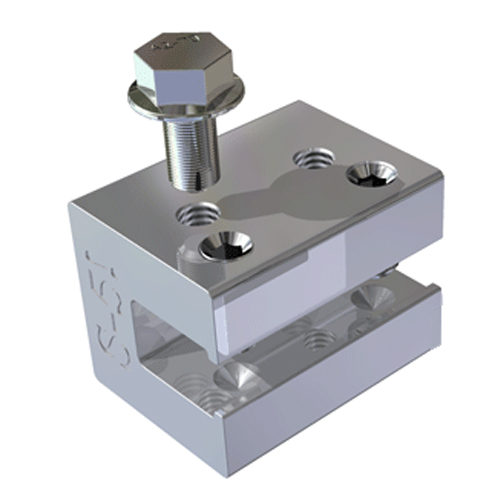

The S-5-H90 is a one-piece clamp that was developed to securely and cost-effectively accommodate metal roof panels with a horizontal seam greater than 0.65″

  • 30 pieces per box
SKU: s-5-h90 Category:

Description

Panel Profiles

H90-profile
H90-profile-seam

S-5-H90

The S-5-H90 is perfect for S-5!® snow retention products and other heavy-duty applications. The strength of the S-5-H90 clamp is in its simple design. The patented setscrews will slightly dimple the metal seam material but will not puncture it­—leaving roof manufacturers’ warranties intact.

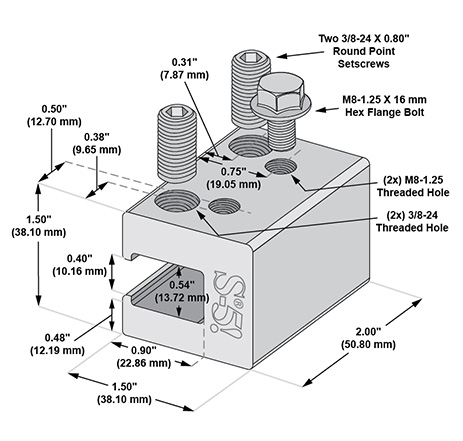

S-5-H90 clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-H90 is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

Installation is Easy

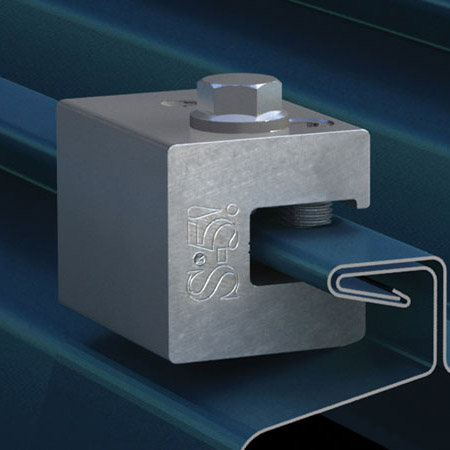

Turning the clamp 90 degrees so that the bolt hole side is facing up, slip the clamp on the seam and tighten the setscrews. Go to the tools page for information and tools available for properly attaching and tensioning S-5!® clamps.

After the clamp is installed, affix ancillary items using either of the two threaded bolt holes and bolt provided. The S-5-H90 is perfect for use with the S-5!® ColorGard® and X-Gard™ snow retention systems and other heavy-duty applications.

The strength of the S-5-H90 clamp is in its simple design. The setscrews will slightly dimple the metal seam material but will not puncture it­—leaving roof manufacturers’ warranties intact.

S5H90-installSteps

S-5!®

The Right Way!

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s-5-logo (1)

Additional information

Weight 13 lbs
Dimensions 7 × 11 × 4 in
