S-5-S mini

$162.50

The S-5-S clamp was created specifically for popular snap-together profiles—including residential profiles by Taylor Metals and Easy Lock Standing Seam. For horizontal seams under .540 inches (like the Firestone UC4) the S-5-S or S-5-S Mini clamp can be used to avoid the necessity of crimping the seam.

  • 50 pieces per box

Out of stock

SKU: s-5-s mini Category:

Description

Panel Profiles

locking seam 1
locking seam 4
locking seam 3
locking seam 2

S-5-N mini

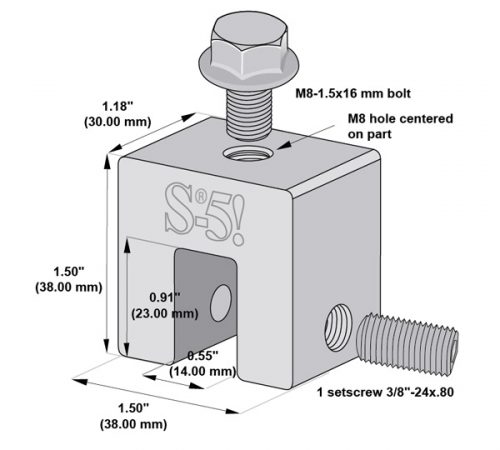

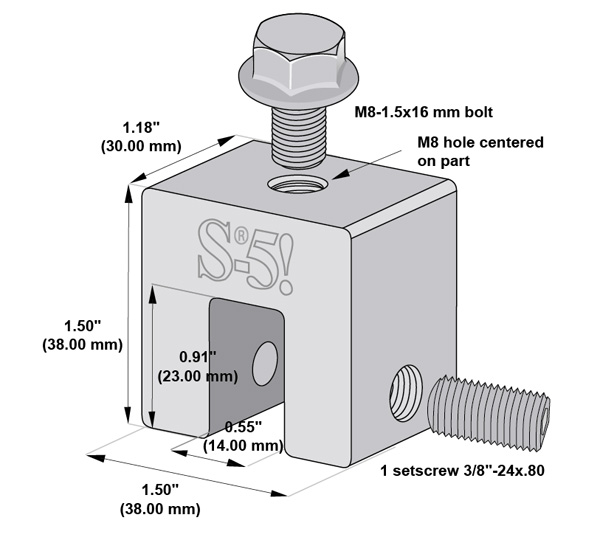

The S-5-S Mini is a medium-duty, non-penetrating seam clamp. It is a bit shorter than the S-5-S and has one setscrew rather than two. The Mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*

*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail™/SnoFence™ or ColorGard® snow retention systems.

No More Mini Bolt – Effective April 1, all S-5! mini clamps will be packaged without M8 bolts. Please check with your distributor for additional information.

Installation is Easy

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrew to the specified tension. Then, affix ancillary items using the bolt provided.

S5S-installSteps

S-5!®

The Right Way!

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s 5 logo 1

Additional information

Weight 14 lbs
Dimensions 7 × 11 × 4 in
