S-5-T

$297.60

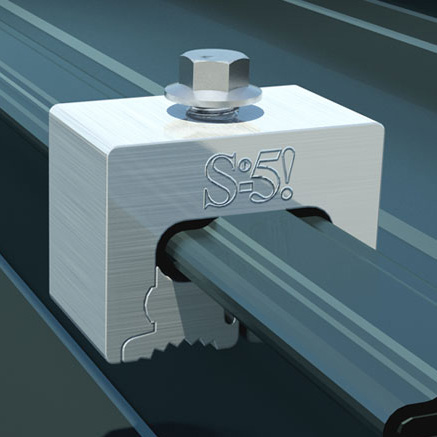

The S-5-T clamp is specially developed to fit profiles having a “T” shaped seam configuration. It will also work on architectural “single-fold” or “horizontal seam” profiles having a horizontal projection of 5/8” or less. Its two-piece design allows it to be easily installed anywhere along the length of the panel seam.

  • 48 pieces per box

Out of stock

SKU: s-5-t Category:

Description

Panel Profiles

t shaped seam

S-5-T

The S-5-T is perfect for S-5!® snow retention products and other heavy-duty applications. The strength of the S-5-T clamp is in its simple design. The patented setscrews will slightly dimple the metal seam material but will not puncture it­—leaving roof manufacturers’ warranties intact.

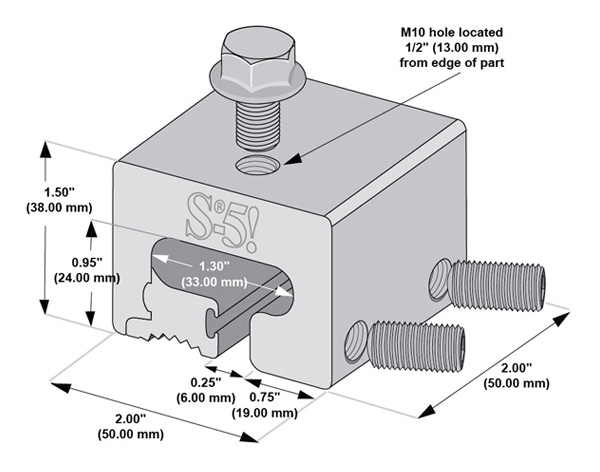

S-5-T clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-T is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

Installation is Easy

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrew to the specified tension. Then, affix ancillary items using the bolt provided.

S5T-installSteps

S-5!®

The Right Way!

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s 5 logo 1

Additional information

Weight 25 lbs
Dimensions 8 × 14 × 4 in
