S-5-U

$189.00

The S-5-U clamp is by far our most popular and most versatile clamp. It fits about 85% of the standing seam profiles manufactured in North America—including most structural and architectural profiles.

  • 30 pieces per box
SKU: s-5-u Category:

Description

Panel Profiles

standing seam
locking seam 1
locking seam 4
MR24 seam

S-5-U

The S-5-U is perfect for S-5!® snow retention products and other heavy-duty applications.

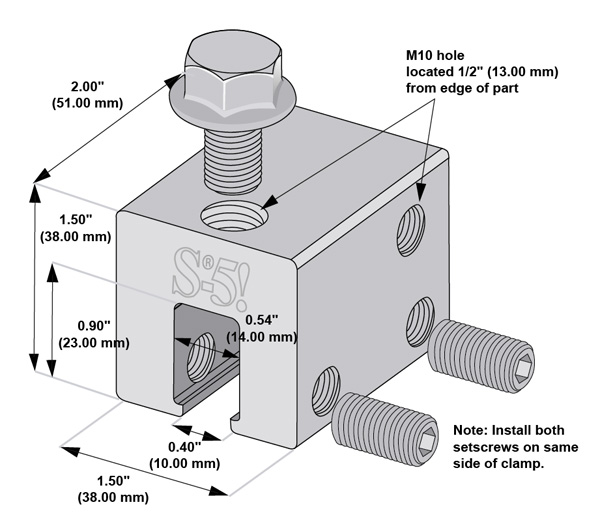

S-5-U clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-U is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

Installation Is Easy

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension. Then, affix ancillary items using the bolt provided.

S-5!®

The Right Way!

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s-5-logo (1)

Additional information

Weight 12 lbs
Dimensions 7 × 11 × 4 in
