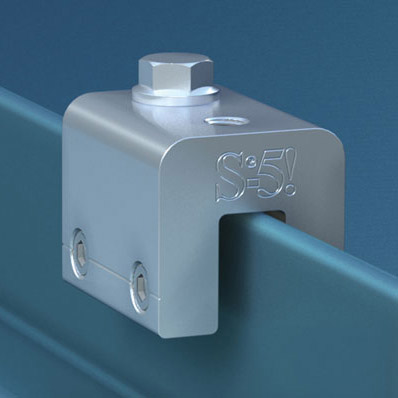

The S-5-V clamp is a versatile clamp that fits vertical-folded seam profiles manufactured in North America—including most structural and architectural profiles.

  • 30 pieces per box

Out of stock

SKU: s-5-v Category:


Panel Profiles

standing seam
MR24 seam


The S-5-V is perfect for S-5!® snow retention products and other heavy-duty applications. The strength of the S-5-V clamp is in its simple design. The patented setscrews will slightly dimple the metal seam material but will not puncture it­—leaving roof manufacturers’ warranties intact.

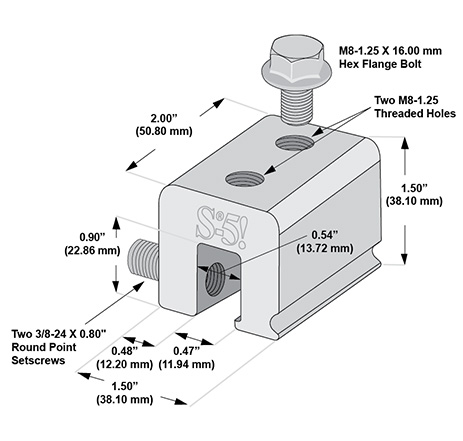

S-5-V clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-V is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

Installation is Easy

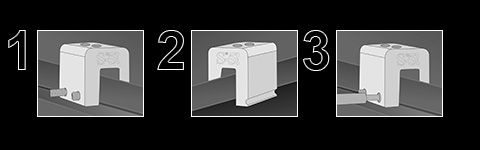

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrew to the specified tension. Then, affix ancillary items using the bolt provided.

S5V installSteps


The Right Way!

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s 5 logo 1

Additional information

Weight 12 lbs
Dimensions 7 × 11 × 4 in
