VersaBracket-47

$230.00

VersaBracket can be used to mount almost anything to an exposed-fastened roof system and is compatible with almost any trapezoidal exposed-fastened profile.

  • 100 pieces per box
SKU: 6900067 Category:

Description

VersaBracket_Color-Strip_square

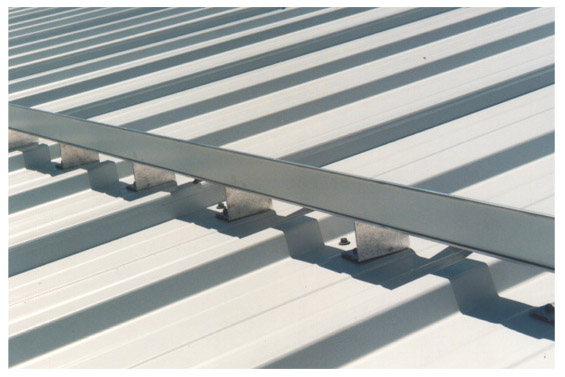

versabracket-2_1

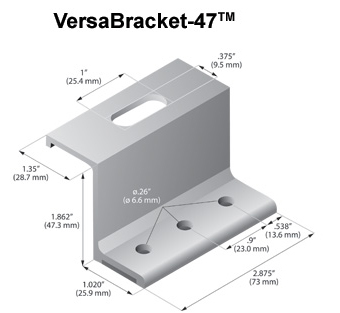

VersaBracket-47

Mount Almost Anything to an Exposed-Fastened Roof System!

VersaBracket™ can be used to mount virtually anything to an exposed-fastened roof system and is compatible with almost any trapezoidal, exposed-fastened profile. No messy sealants to apply! No chance for leaks! The VersaBracket™ comes with factory-applied sealant already in the base for a water-tight attachment.

VersaBracket™ is so strong, it will even support heavy-duty applications like snow retention. For exposed-fastened, trapezoidal profiles, the VersaBracket™ is the perfect match for our ColorGard® snow retention systems (For corrugated roofs use CorruBracket™). VersaBracket™ is extremely economical and facilitates quick and easy installation.

Each VersaBracket™ comes with factory-applied butyl sealant in the base. A structural aluminum attachment bracket, VersaBracket™ is compatible with most common metal roofing materials.

The VersaBracket™ has been tested extensively on a wide variety of applications. To view test data, click here. Note: This link will take you to S-5!’s website.

Easy Installation

VersaBracket™ is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e. wood decking, wood or steel purlins or trusses. No surface preparation is necessary; simply wipe away excess oil and debris, peel the release paper from the base, align and apply. Secure through the pre-punched holes using the appropriate screws (not included) for the supporting structure.

VB-installSteps

S-5!®

The Right Way!

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s-5-logo (1)

Additional information

Weight 16 lbs
Dimensions 8 × 14 × 4 in
