S5T and S5T mini Clamps

The S-5-T clamp is specially developed to fit profiles having a “T” shaped seam configuration. It will also work on architectural “single-fold,” or “angle-seam” profiles having a horizontal projection of 5/8” or less.  Its two-piece design allows it to be easily installed anywhere along the length of the panel seam.

The S-5-T clamp has been tested for load-to-failure results on a variety of horizontal standing seam roof profiles from leading panel manufacturers. To view test data, click here. Note: This link will take you to S-5!’s website.

S5T

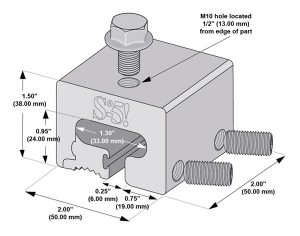

S5T-082013 (1)


The S-5-T is perfect for S-5!® snow retention products and other heavy-duty applications. The strength of the S-5-T clamp is in its simple design. The patented setscrews will slightly dimple the metal seam material but will not puncture it­—leaving roof manufacturers’ warranties intact.

S-5-T clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-T is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

S5T mini

Call for Info and Pricing

S-5-Z-3d-mini_zoom

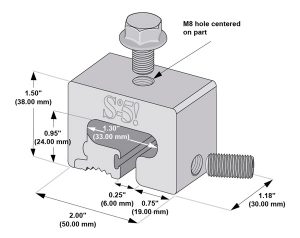

The S-5-T Mini is a bit shorter than the S-5-T and has one setscrew and one threaded bolt hole rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*

*S-5!® mini clamps are not compatible with, and should not be used with, S-5! SnoRail™/SnoFence™ or ColorGard® snow retention systems.

S-5-T Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-T is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

Installation

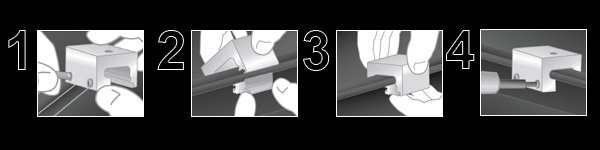

Installation is as simple as placing the clamp on the seam, positioning the insert piece, and tightening the patented round-point setscrews to the specified tension. Then, affix ancillary items using the bolt provided.

S5T-installSteps (1)

Please note: The above image illustrates the S-5-T. The steps remain the same for the S-5-T Mini; however, there will only be one setscrew on the clamp.
