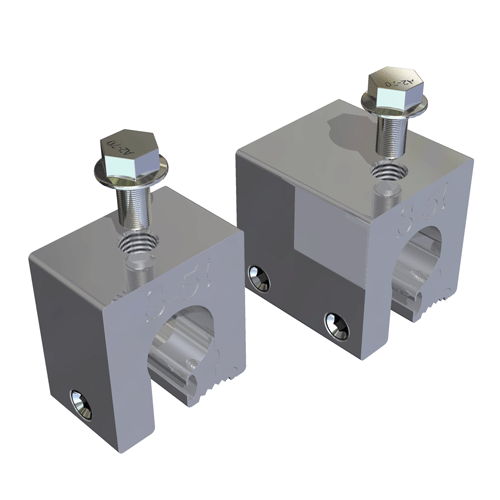

S5Z and S5Z mini Clamps

The S-5-Z clamp is specially developed to fit profiles having a round “bulb” seam configuration.  Its two-piece design allows it to be easily installed anywhere along the length of the rib.

The S-5-Z is perfect for S-5!® snow retention products and other heavy-duty applications.

The S-5-Zclamp has been tested for load-to-failure results on a variety of horizontal standing seam roof profiles from leading panel manufacturers. To view test data, click here. Note: This link will take you to S-5!’s website.[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1462369515832{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;}”][vc_column width=”1/2″ css=”.vc_custom_1462370691470{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;}”][vc_column_text css=”.vc_custom_1464960031080{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;background-color: #001c88 !important;}”]

S5Z

[/vc_column_text][vc_column_text css=”.vc_custom_1462457387114{margin-top: 1px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;background-color: #e6e1f2 !important;}”]

Call for Info and Pricing

[/vc_column_text][vc_column_text css=”.vc_custom_1464960089368{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;}”]

S-5-Z-3d_zoom

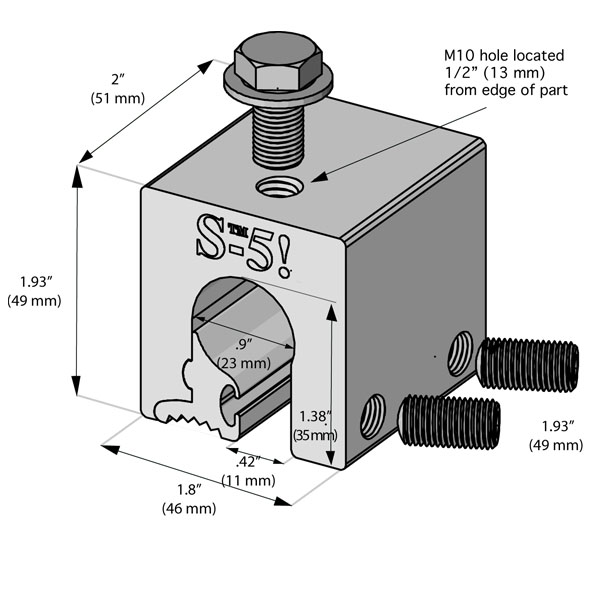

The S-5-Z is perfect for S-5!® snow retention products and other heavy-duty applications. The strength of the S-5-Z clamp is in its simple design. The patented setscrews will slightly dimple the metal seam material but will not puncture it­—leaving roof manufacturers’ warranties intact.

S-5-Z clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-Z is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.[/vc_column_text][/vc_column][vc_column width=”1/2″ css=”.vc_custom_1462370468308{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;}”][vc_column_text css=”.vc_custom_1464960096921{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;background-color: #001c88 !important;}”]

S5Z mini

[/vc_column_text][vc_column_text css=”.vc_custom_1462457387114{margin-top: 1px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;background-color: #e6e1f2 !important;}”]

Call for Info and Pricing

[/vc_column_text][vc_column_text css=”.vc_custom_1464960151889{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;}”]

S-5-Z-3d-mini_zoom

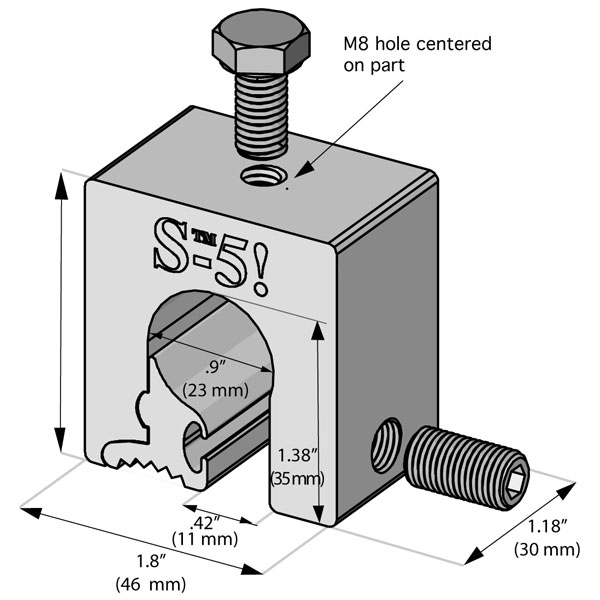

The S-5-Z Mini is a bit shorter than the S-5-Z and has one setscrew and one threaded bolt hole rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*

*S-5!® mini clamps are not compatible with, and should not be used with, S-5! SnoRail™/SnoFence™ or ColorGard® snow retention systems.

S-5-Z Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-Z is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1462375985998{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;}”][vc_column css=”.vc_custom_1462369552805{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;}”][vc_column_text css=”.vc_custom_1464807322666{margin-top: 1px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;background-color: #e6e1f2 !important;}”]

Installation

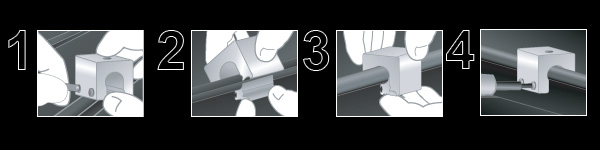

[/vc_column_text][vc_column_text css=”.vc_custom_1464960218428{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;border-top-width: 0px !important;border-right-width: 0px !important;border-bottom-width: 0px !important;border-left-width: 0px !important;}”]Installation is as simple as placing the clamp on the seam, positioning the insert piece, and tightening the patented round-point setscrews to the specified tension. Then, affix ancillary items using the bolt provided.

S5Z-installSteps

Please note: The above image illustrates the S-5-Z. The steps remain the same for the S-5-Z Mini; however, there will only be one setscrew on the clamp.
