Dektite Original Pipe Boots

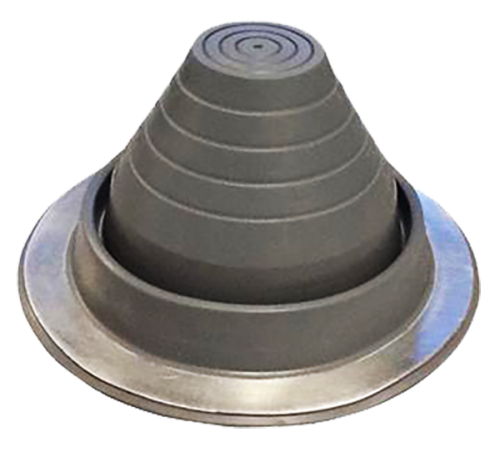

DEKTITE Standard Round Base Pipe Boots Gray EPDM with Aluminum Base Ring Fits 0″ to 25-3/8″ Pipes

SKU: DF103B Categories: ,


top pictures resized

Dektite® Original

The original watertight flashing for metal roof penetrations

boot logo
  • Easy to identify
    Dektite brand name engraved on product for traceability
  • Unique cone design
    Provides 10mm (1/2”) continuous contact with flashed pipe providing a watertight seal
  • Clear markings in metric and imperial measures
    Makes for easier cutting to pipe size
  • Proven design
    Associated with the roofing industry globally for over 40 years
  • Size ranges – Numbers 0-9
    Available in Black and Grey EPDM, and red silicone
  • Twenty year warranty
    Just fit it and forget it – we’ve got you covered

Selection Guide

selection chart

Available in Black and Grey EPDM or Red Silicone

EPDM will withstand constant temperatures at the roofline of -50°C (-58°F) to 115°C (239°F) and up to 150°C (302°F) intermittently
Red Silicone will withstand constant temperatures at the roofline of -50°C (-58°F) to 200°C (392°F) and up to 250°C (482°F) intermittentl

Please Note That the outside temperature of the pipe may be significantly different to the exit temperature of the appliance.

Installation Instructions

install diag
  • Always use the neutral cure low modulus silicone for sealing
  • In corrosive and coastal environments fix using blind aluminium rivets
retrofit boot


original red


Additional information

Weight N/A
Dimensions N/A
Fitment Size

0" – 1-3/8", 1/4" – 2-1/2", 1-3/4" – 3-1/4", 1/4" – 5", 3" – 6-1/4", 4-1/2" – 7-1/2", 5" – 9", 6"-11", 7" – 13", 10" – 19"


Black, Gray
