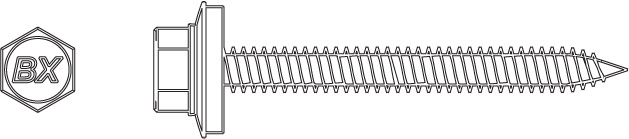

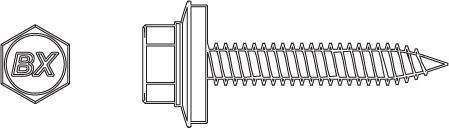

TRUGRIP™ 1 1/2" METALWOOD PREPAINTED SCREWS

TruGrips6@4x 80

Our pre-painted 1-1/2" Tru-Grip™ fasteners are great for use with "R" and "AG" panel applications, or wherever an exposed fastener is called for to attach metal to wood. The bonded neoprene washer helps ensure a perfect seal every time.

Special order colors are available. Please call for lead time and pricing.

APPLICATIONS:

  •  Roof & wall panel to wood structure
  •  Panel over insulation to wood structure
  • Stitch root and wall panel

FEATURES:

  • Non-walking sharp gimlet point for fast material engagement
  • Double lead thread for fast panel pickup
  • Dual sealing bonded washer prevents leaks Vulcanized bonding of washer eliminates separation of EPDM from the metal backing
  • High hat HWH for driving stability
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque
TruGrips5@4x 80
TruGrips4@4x 80

1-1/2" TRUGRIP PAINTED METAL-WOOD SCREWS

Part Number Description Color Order
TRG-HWH-1.5-RW9-15x11/2" HWH w/Bonded WasherRegal WhiteCALL for Pricing
TRG-HWH-1.5-PW9-15x11/2" HWH w/Bonded WasherPolar WhiteCALL for Pricing
TRG-HWH-1.5-LS9-15x11/2" HWH w/Bonded WasherLight StoneCALL for Pricing
TRG-HWH-1.5-ST9-15x11/2" HWH w/Bonded WasherSahara TanCALL for Pricing
TRG-HWH-1.5-DS9-15x11/2" HWH w/Bonded WasherDesert SandCALL for Pricing
TRG-HWH-1.5-BU9-15x11/2" HWH w/Bonded WasherBurgundyCALL for Pricing
TRG-HWH-1.5-BK9-15x11/2" HWH w/Bonded WasherBlackCALL for Pricing
TRG-HWH-1.5-TB9-15x11/2" HWH w/Bonded WasherTudor BrownCALL for Pricing
TRG-HWH-1.5-AB9-15x11/2" HWH w/Bonded WasherAntique BronzeCALL for Pricing
TRG-HWH-1.5-BS9-15x11/2" HWH w/Bonded WasherBurnished SlateCALL for Pricing
TRG-HWH-1.5-RW9-15x11/2" HWH w/Bonded WasherRegal WhiteCALL for Pricing
TRG-HWH-1.5-CR9-15x11/2" HWH w/Bonded WasherCounty RedCALL for Pricing
TRG-HWH-1.5-BR9-15x11/2" HWH w/Bonded WasherBright RedCALL for Pricing
TRG-HWH-1.5-GR9-15x11/2" HWH w/Bonded WasherForest GreenCALL for Pricing
TRG-HWH-1.5-FG9-15x11/2" HWH w/Bonded WasherFern GreenCALL for Pricing
TRG-HWH-1.5-IG9-15x11/2" HWH w/Bonded WasherIvy GreenCALL for Pricing
TRG-HWH-1.5-CH9-15x11/2" HWH w/Bonded WasherCharcoal GrayCALL for Pricing
TRG-HWH-1.5-AG9-15x11/2" HWH w/Bonded WasherAsh GrayCALL for Pricing
TRG-HWH-1.5-OG9-15x11/2" HWH w/Bonded WasherOld Town GrayCALL for Pricing
TRG-HWH-1.5-RB9-15x11/2" HWH w/Bonded WasherRegal BlueCALL for Pricing
TRG-HWH-1.5-HB9-15x11/2" HWH w/Bonded WasherHawaiian BlueCALL for Pricing

1-1/2" TRUGRIP UN-PAINTED METAL-WOOD SCREWS

Part Number Description Color Order
TRG-HWH-1.59-15x11/2" HWH w/Bonded WasherUnpaintedCALL for Pricing

INSTALLATION GUIDELINES:

  • A Standard screwgun with a depth sensitive nosepiece should be used to install TruGrip. For optional fastener performance, the screwgun should be a minimum of 6 amps and have an RPM range of 0-2500.

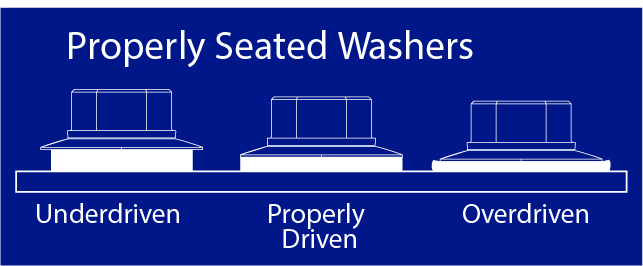

  • Adjust the screwgun nosepiece to properly seat the fastener.
  • New magnetic sockets must be correctly set before use. Remove chip build-up as needed.
  • Overdriving may result in torsional failure of the fastener or stripout of the substrate.
  • The fastener must penetrate beyond the metal structure a minimum of 3 pitches of thread.
