Expansion Clips

Expansion Clips

Choose from the sizes below to find the right expansion clip for your application. Tops and bases may be mixed and matched for your application- please call for more information.

1″|1-1/2″|2″|2-1/2″|2-3/8″|3″

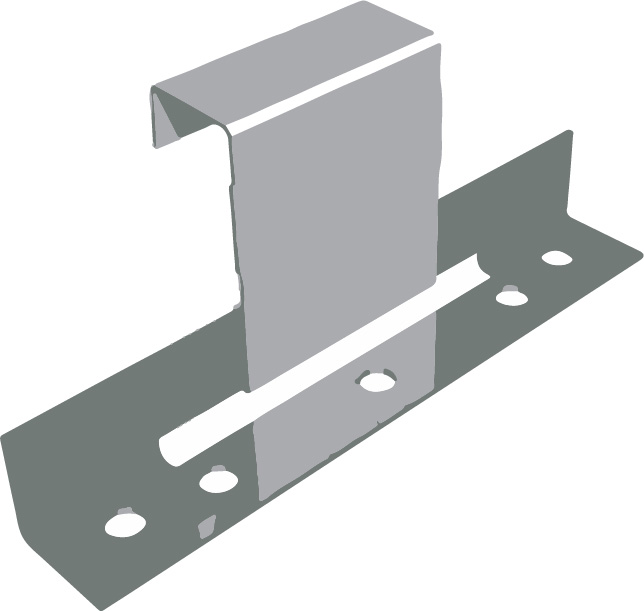

1″ Slider Assembly

Call for Info and Pricing

1-inch-exp-clip


Dimensions: Height: 1″ Top Width: 3/8″
Downleg: 7/32″
Base Width: 3.40″

Box Quantity: 500 pcs
Available in:

Material Part#
26ga Galvanized 100-SAE-26-G
24ga Galvalume 100-SAE-26-G
26ga 304 stainless steel 100-SAE-26-S
24ga 304 stainless steel 100-SAE-24-S

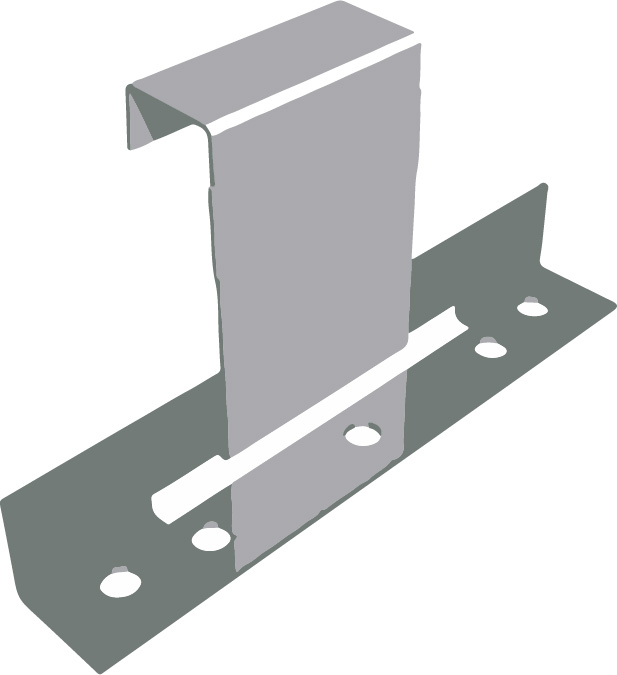

1″ Slider Assembly for Knudson

Call for Info and Pricing

1-inch-exp-clip


1″ expansion clips designed to fit Knudson profile panel

Dimensions: Height 1″ Top Width: 7/16″
Downleg: 7/32″
Base Width: 3.40″

Box Quantity: 500 Pcs
Available in:

Material Part#
26ga Galvanized 100-SAE-26-G-K
26ga 304 Stainless Steel 100-SAE-26-S-K

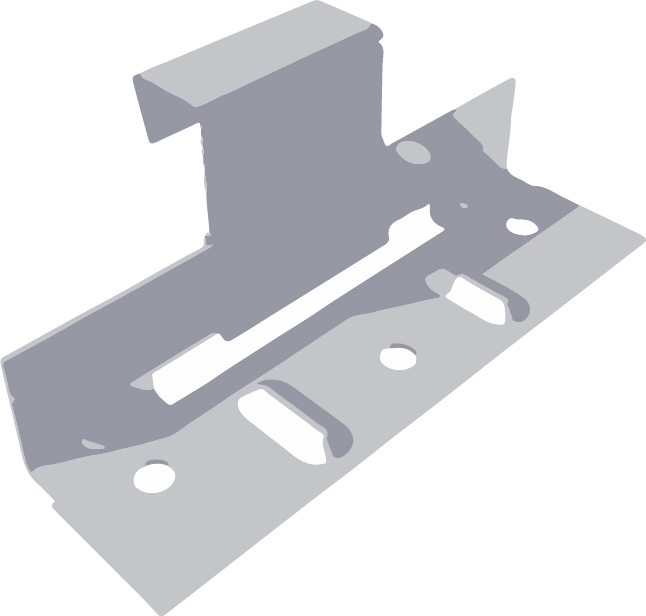

1-1/2″ Slider Assembly

Call for Info and Pricing

1_50-inch-exp-clip


Dimensions: Height: 1-1/2″ Top Width: 7/16″
Base Width: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
26ga Galvanized 5/16″ 150-SAE-2626-G
26ga 304 Stainless Steel 5/16″ 150-SAE-2626-S
24ga  Galvalume 5/16″ 150-SAE-2424-G
24ga 304 Stainless Steel 5/16″ 150-SAE-2424-S
22ga  Galvanized 5/16″ 150-SAE-2222-G
22ga 304 Stainless Steel 5/16″ 150-SAE-2222-S
26ga Galvanized None 150-SAE-2626-G-NDL
26ga 304 Stainless Steel None 150-SAE-2626-S-NDL
24ga Galvalume None 150-SAE-2424-G-NDL
24ga 304 Stainless Steel None 150-SAE-2424-S-NDL
22ga Galvanized None 150-SAE-2222-G-NDL
22ga 304 Stainless Steel None 150-SAE-2222-S-NDL
26ga Galvanized 3/8″ 150-SAE-2626-S-38DL
26ga 304 Stainless Steel 3/8″ 150-SAE-2626-S-38DL
24ga Galvalume 3/8″ 150-SAE-2424-G-38DL
24ga 304 Stainless Steel 3/8″ 150-SAE-2424-S-38DL
22ga  Galvanized 3/8″ 150-SAE-2222-G-38DL
22ga 304 Stainless Steel 3/8″ 150-SAE-2222-S-38DL

1-1/2″ Slider Assembly for Knudson

Call for Info and Pricing

1_50-inch-exp-clip


Dimensions: Height 1 1/2″ Top Width: 1/2″
Base Width: 5″

Box Quantity: 500 PCS
Available in:

Material Downleg Part#
26ga Galvanized 3/8″ 150-SAE-2626-G-K
26ga 304 Stainless Steel 3/8″ 150-SAE-2626-S-K
24ga  Galvalume 3/8″ 150-SAE-2424-G-K
24ga 304 Stainless Steel 3/8″ 150-SAE-2424-S-K
22ga  Galvanized 3/8″ 150-SAE-2222-G-K
22ga 304 Stainless Steel 3/8″ 150-SAE-2222-S-K
26ga Galvanized None 150-SAE-2626-G-K-NDL
26ga 304 Stainless Steel None 150-SAE-2626-S-K-NDL
24ga Galvalume None 150-SAE-2424-G-K-NDL
24ga 304 Stainless Steel None 150-SAE-2424-S-K-NDL
22ga Galvanized None 150-SAE-2222-G-K-NDL
22ga 304 Stainless Steel None 150-SAE-2222-S-K-NDL

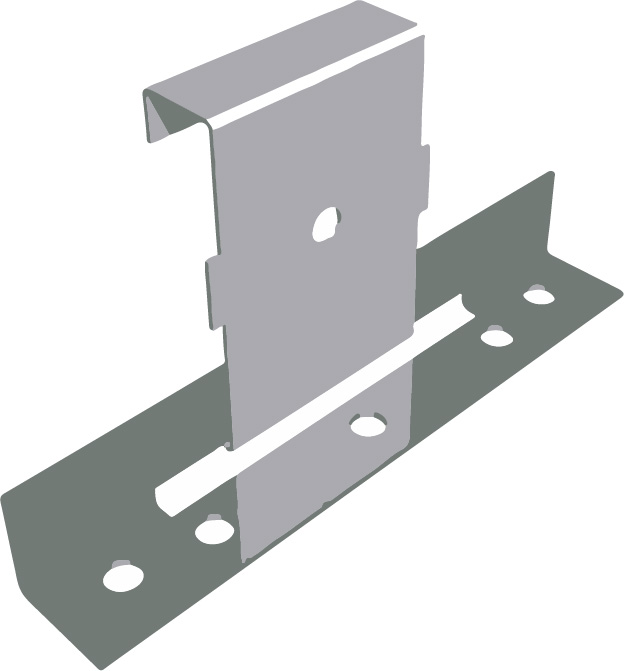

2″ Slider Assembly

Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 2″ Top Width: 3/4″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 1/2″ 200-SAE-2424-G
24ga Top and Base 304 Stainless Steel 1/2″ 200-SAE-2424-S
24ga Top and 22ga Base Galv. 1/2″ 200-SAE-2422-G
24ga Top and 22ga Base 304 Stainless Steel 1/2″ 200-SAE-2422-S
22ga Top and Base Galvanized 1/2″ 200-SAE-2222-G
22ga Top and Base 304 Stainless Steel 1/2″ 200-SAE-2222-S
22ga Top and 18ga Base UL Rated Galvanized 1/2″ 200-SAE-2218-G
22ga Top and 18ga Base 304 Stainless Steel 1/2″ 200-SAE-2218-S


2″ Slider Assembly for Knudson



Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 2″ Top Width: 13/16″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 1/2″ 200-SAE-2424-G-K
24ga Top and Base 304 Stainless Steel 1/2″ 200-SAE-2424-S-K
24ga Top and 22ga Base Galv. 1/2″ 200-SAE-2422-G-K
24ga Top and 22ga Base 304 Stainless Steel 1/2″ 200-SAE-2422-S-K
22ga Top and Base Galvanized 1/2″ 200-SAE-2222-G-K
22ga Top and Base 304 Stainless Steel 1/2″ 200-SAE-2222-S-K
22ga Top and 18ga Base Galvanized 1/2″ 200-SAE-2218-G-K
22ga Top and 18ga Base 304 Stainless Steel 1/2″ 200-SAE-2218-S-K


2″ Slider Assembly for Quadro



Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 2″ Top Width: 5/8″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 3/8″ 200-SAE-2424-G-QP
24ga Top and Base 304 Stainless Steel 3/8″ 200-SAE-2424-S-QP
24ga Top and 22ga Base Galv. 3/8″ 200-SAE-2422-G-QP
24ga Top and 22ga Base 304 Stainless Steel 3/8″ 200-SAE-2422-S-QP
22ga Top and Base Galvanized 3/8″ 200-SAE-2222-G-QP
22ga Top and Base 304 Stainless Steel 3/8″ 200-SAE-2222-S-QP
22ga Top and 18ga Base Galvanized 3/8″ 200-SAE-2218-G-QP
22ga Top and 18ga Base 304 Stainless Steel 3/8″ 200-SAE-2218-S-QP

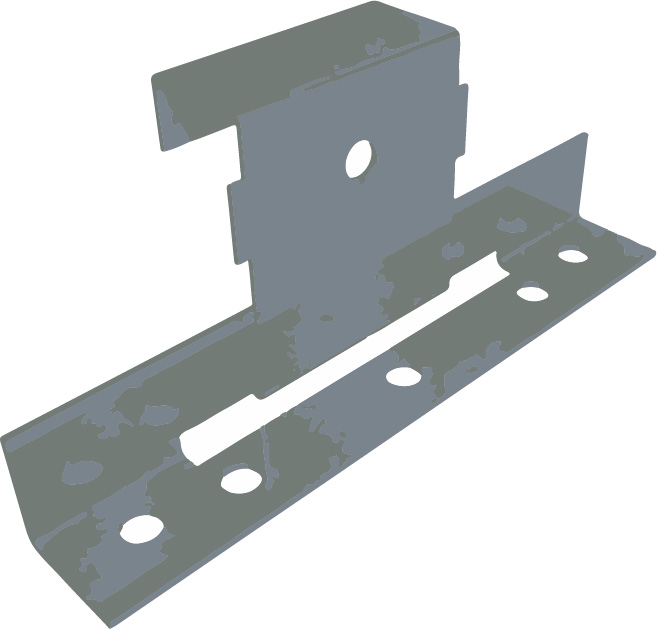

2 1/2″ Slider Assembly

Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 2 1/2″ Top Width: 3/4″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 1/2″ 250-SAE-2424-G
24ga Top and Base 304 Stainless Steel 1/2″ 250-SAE-2424-S
24ga Top and 22ga Base Galv. 1/2″ 250-SAE-2422-G
24ga Top and 22ga Base 304 Stainless Steel 1/2″ 250-SAE-2422-S
22ga Top and Base Galvanized 1/2″ 250-SAE-2222-G
22ga Top and Base 304 Stainless Steel 1/2″ 250-SAE-2222-S
22ga Top and 18ga Base  Galvanized 1/2″ 250-SAE-2218-G
22ga Top and 18ga Base 304 Stainless Steel 1/2″ 250-SAE-2218-S


2 1/2″ Slider Assembly for Knudson



Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 2.5″ Top Width: 13/16″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 1/2″ 250-SAE-2424-G-K
24ga Top and Base 304 Stainless Steel 1/2″ 250-SAE-2424-S-K
24ga Top and 22ga Base Galv. 1/2″ 250-SAE-2422-G-K
24ga Top and 22ga Base 304 Stainless Steel 1/2″ 250-SAE-2422-S-K
22ga Top and Base Galvanized 1/2″ 250-SAE-2222-G-K
22ga Top and Base 304 Stainless Steel 1/2″ 250-SAE-2222-S-K
22ga Top and 18ga Base Galvanized 1/2″ 250-SAE-2218-G-K
22ga Top and 18ga Base 304 Stainless Steel 1/2″ 250-SAE-2218-S-K


2 1/2″ Slider Assembly for Quadro



Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 2 1/2″ Top Width: 5/8″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 3/8″ 250-SAE-2424-G-QP
24ga Top and Base 304 Stainless Steel 3/8″ 250-SAE-2424-S-QP
24ga Top and 22ga Base Galv. 3/8″ 250-SAE-2422-G-QP
24ga Top and 22ga Base 304 Stainless Steel 3/8″ 250-SAE-2422-S-QP
22ga Top and Base Galvanized 3/8″ 250-SAE-2222-G-QP
22ga Top and Base 304 Stainless Steel 3/8″ 250-SAE-2222-S-QP
22ga Top and 18ga Base Galvanized 3/8″ 250-SAE-2218-G-QP
22ga Top and 18ga Base 304 Stainless Steel 3/8″ 250-SAE-2218-S-QP

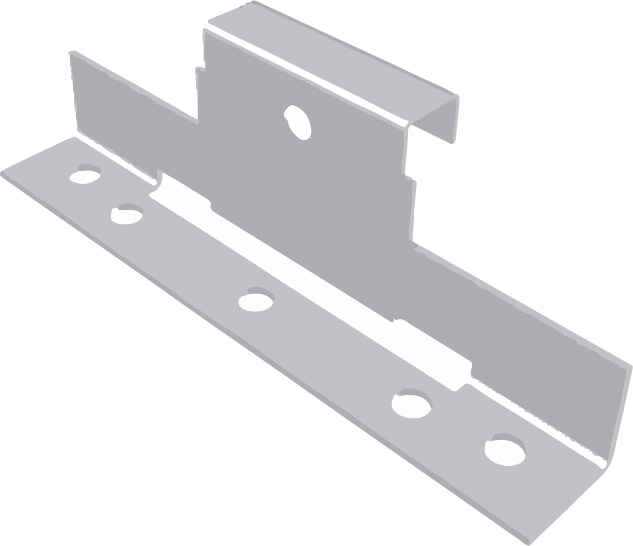

3″ Slider Assembly

Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 3″ Top Width: 3/4″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 1/2″ 300-SAE-2424-G
24ga Top and Base 304 Stainless Steel 1/2″ 300-SAE-2424-S
24ga Top and 22ga Base Galv. 1/2″ 300-SAE-2422-G
24ga Top and 22ga Base 304 Stainless Steel 1/2″ 300-SAE-2422-S
22ga Top and Base Galvanized 1/2″ 300-SAE-2222-G
22ga Top and Base 304 Stainless Steel 1/2″ 300-SAE-2222-S
22ga Top and 18ga Base  Galvanized 1/2″ 300-SAE-2218-G
22ga Top and 18ga Base 304 Stainless Steel 1/2″ 300-SAE-2218-S


3″ Slider Assembly for Knudson



Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 3″ Top Width: 13/16″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 1/2″ 300-SAE-2424-G-K
24ga Top and Base 304 Stainless Steel 1/2″ 300-SAE-2424-S-K
24ga Top and 22ga Base Galv. 1/2″ 300-SAE-2422-G-K
24ga Top and 22ga Base 304 Stainless Steel 1/2″ 300-SAE-2422-S-K
22ga Top and Base Galvanized 1/2″ 300-SAE-2222-G-K
22ga Top and Base 304 Stainless Steel 1/2″ 300-SAE-2222-S-K
22ga Top and 18ga Base Galvanized 1/2″ 300-SAE-2218-G-K
22ga Top and 18ga Base 304 Stainless Steel 1/2″ 300-SAE-2218-S-K


3″ Slider Assembly for Quadro



Call for Info and Pricing

2-inch-exp-clip


Dimensions: Height: 3″ Top Width: 5/8″
Base Dimensions: 5″
Box Quantity: 500 PCS
Available in:

Material Downleg Part#
24ga Top and Base Galvanized 3/8″ 300-SAE-2424-G-QP
24ga Top and Base 304 Stainless Steel 3/8″ 300-SAE-2424-S-QP
24ga Top and 22ga Base Galv. 3/8″ 300-SAE-2422-G-QP
24ga Top and 22ga Base 304 Stainless Steel 3/8″ 300-SAE-2422-S-QP
22ga Top and Base Galvanized 3/8″ 300-SAE-2222-G-QP
22ga Top and Base 304 Stainless Steel 3/8″ 300-SAE-2222-S-QP
22ga Top and 18ga Base Galvanized 3/8″ 300-SAE-2218-G-QP
22ga Top and 18ga Base 304 Stainless Steel 3/8″ 300-SAE-2218-S-QP

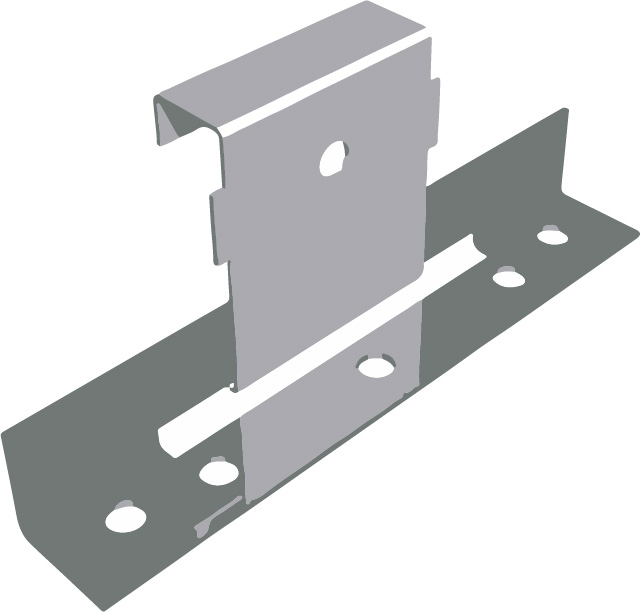

2-3/8″

Call for Info and Pricing

expansion-clip-238-EC


Dimensions: Height: 2-3/8″ Top Width: 3/4″
Downleg: 1/2″
Box Quantity: 250 PCS
Available in:

Material Part#
26ga  Galvanized 238-EC-400-G
26ga 304 Stainless Steel 238-EC-400-S

2-3/8″ for Knudson profile

Call for Info and Pricing

expansion-clip-238-EC


Dimensions: Height: 2-3/8″ Top Width: 13/16″
Downleg: 1/2″
Box Quantity: 250 PCS
Available in:

Material Part#
26ga Galvanized 238-EC-400-G-K
26ga 304 Stainless Steel 238-EC-400-S-K
