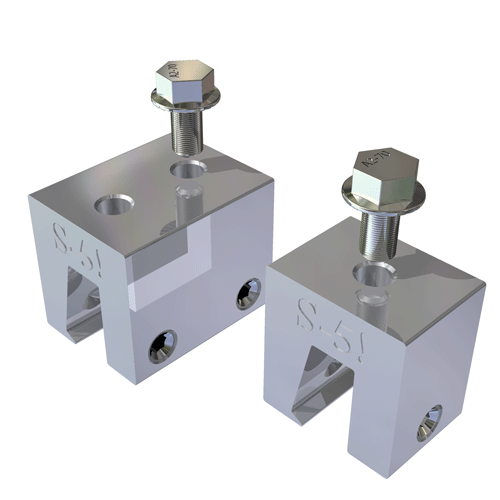

S5N and S5N mini Clamps

S-5-N and S-5-N Mini clamps were designed with patented S-5!® zero-penetration technology for application on the popular 1″ nail strip metal roof profiles: Taylor Metals’ Easy Lock™, ASC Building Products’ Skyline Roofing®, McElroy Metals’ Meridian, and New Tech Machinery’s FF100, and roofing types with similar profiles. The clamp boasts a wider throat that accommodates most nail strip profiles, minimizing the need to field crimp. An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process—there is no longer a need to hold the clamp in place while setscrews are tensioned. The combination of these two features allows the clamp to sit straighter on the seam. Nail strip profiles just got a whole lot simpler!

The S-5-N clamp has been tested for load-to-failure results on most major brands of 1″ nail strip profiles of standing seam roofing. To view test data, click here. Note: This link will take you to S-5!’s website.

S5N

S-5-N


The S-5-N is designed for heavy duty applications such as snow retention. S-5-N can be used to mount ColorGard® to popular nail strip profiles, providing the strongest snow retention system on the market. An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process, and the S-5!® patented zero-penetration technology preserves the roof manufacturers’ warranties. With S-5-N clamps, mounting heavy duty applications to nail strip profiles just got a whole lot simpler!

S-5-N clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-N is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

S5N mini

S-5-Nmini


The S-5-N Mini is a bit shorter than the S-5-N and has one setscrew and one threaded bolt hole rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*

*S-5!® mini clamps are not compatible with, and should not be used with, S-5! SnoRail™/SnoFence™ or ColorGard® snow retention systems.

S-5-N Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-N is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

Installation

An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process—there is no longer a need to hold the clamp in place while setscrews are tensioned. The combination of these two features allows the clamp to sit straighter on the seam. Nail strip profiles just got a whole lot simpler!

S5N-install

Please note: The above image illustrates the S-5-N. The steps remain the same for the S-5-N Mini; however, there will only be one setscrew on the clamp.
