S-5-E

$246.00

The S-5-E is designed specifically for double-folded standing seam roofs that are popular in Europe and in the U.S. The S-5-E is a bit smaller and less expensive than the S-5-U, but every bit as strong. Designed to fit Butler’s MR-24® and other double folded standing seam roofs.

  • 60 pieces per box
SKU: s-5-e Category:

Description

Panel Profiles

standing seam
MR24 seam

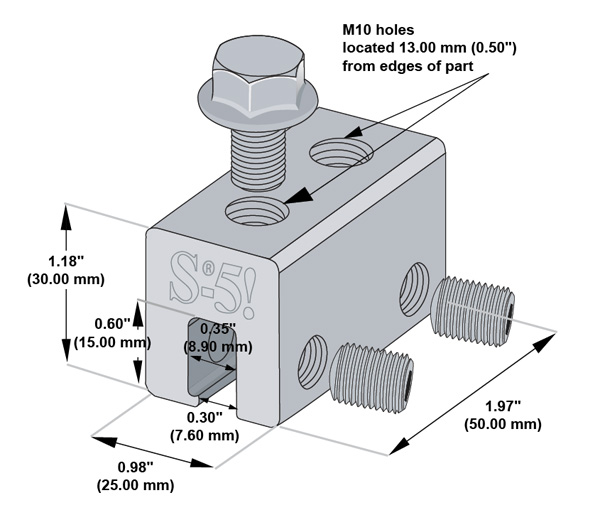

S-5-E

The S-5-E clamp is designed specially for double-folded standing seam roof profiles having the appropriate dimensioning. This clamp is also the one recommended for Butler’s MR24™.

Although a bit smaller and less expensive than the S-5-U,  for these profiles, the S-5-E is just as strong.

The S-5-E clamps has been tested extensively on a wide variety of applications. To view test data, click here. Note: This link will take you to S-5!’s website.

Installation

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension. Then, affix ancillary items using the bolt provided.

S5E-installSteps

S-5!®

The Right Way!

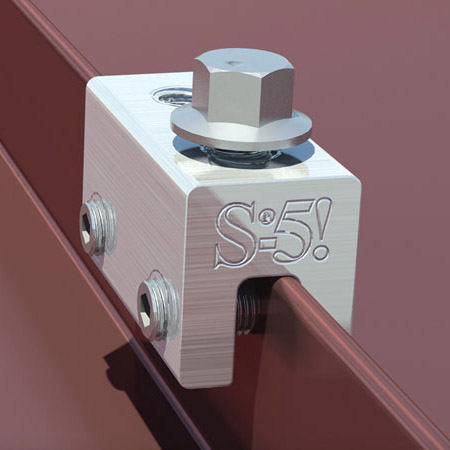

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s-5-logo (1)

Additional information

Weight 14 lbs
Dimensions 7 × 11 × 4 in
