S-5-E mini

$279.00

The S-5-E/mini is designed specifically for double-folded standing seam roofs that are popular in Europe and in the U.S. The S-5-E/mini is a bit smaller and less expensive than the S-5-U, but every bit as strong. Designed to fit Butler’s MR-24® and other double folded standing seam roofs.

  • 90 pieces per box
SKU: s-5-e mini Category:

Description

Panel Profiles

standing seam
MR24 seam

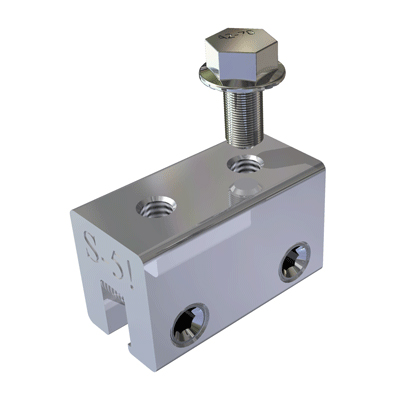

S-5-E

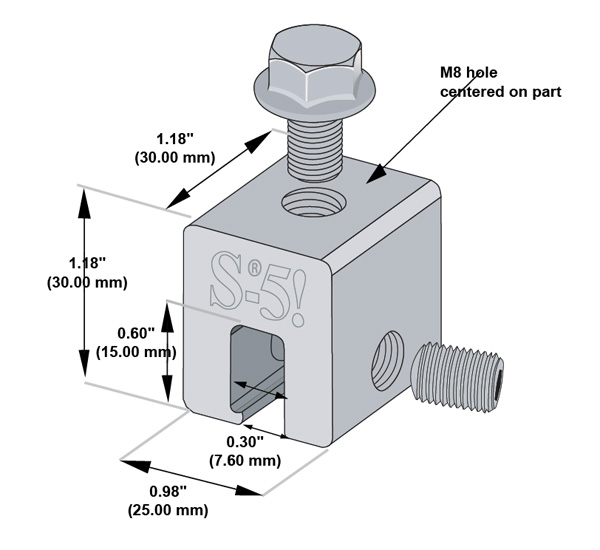

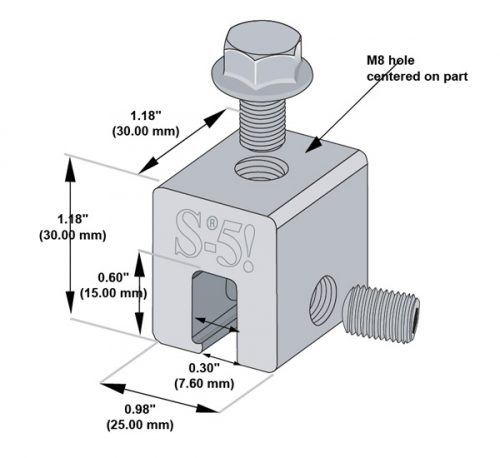

The S-5-E Mini is a bit shorter than the S-5-E and has one setscrew and one threaded bolt hole rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*

S-5-E Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-E is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

*S-5!® mini clamps are not compatible with, and should not be used with, S-5! SnoRail™/SnoFence™ or ColorGard® snow retention systems.

Installation

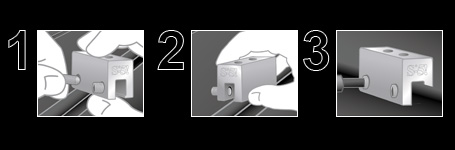

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension. Then, affix ancillary items using the bolt provided.



S5E-installSteps

S-5!®

The Right Way!

S-5!® clamps attach to the panel seam by the tightening of two “bullet-nosed” stainless steel setscrews against the seam material. (This is usually done with an industrial grade screwgun.) The round point setscrews compress the seam material against the opposite wall of the clamp. They will “dimple” the seam material, but will not penetrate it. Threaded holes in the clamp (stainless hardware is provided) enable the easy attachment of various ancillary items to the clamps.

s-5-logo (1)

Additional information

Weight 14 lbs
Dimensions 7 × 11 × 4 in
