S5E and S5E Mini Clamps

The S-5-E clamp is designed specially for double-folded standing seam roof profiles having the appropriate dimensioning. This clamp is also the one recommended for Butler’s MR24™.

Although a bit smaller and less expensive than the S-5-U,  for these profiles, the S-5-E is just as strong.

The S-5-E clamps has been tested extensively on a wide variety of applications. To view test data, click here. Note: This link will take you to S-5!’s website.

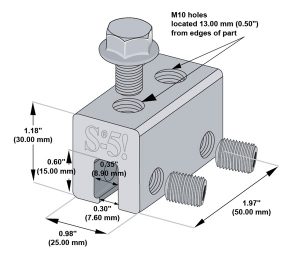

S5E

S5E-082013

The S-5-E is perfect for S-5!® snow retention products and other heavy-duty applications.

S-5-E clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-E is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel.

$246.00

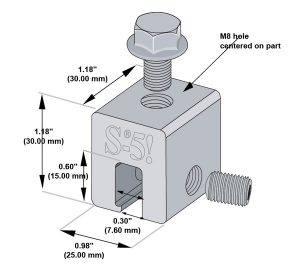

S5E mini

S5EMini-082113

The S-5-E Mini is a bit shorter than the S-5-E and has one setscrew and one threaded bolt hole rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!*

*S-5!® mini clamps are not compatible with, and should not be used with, S-5! SnoRail™/SnoFence™ or ColorGard® snow retention systems.

S-5-E Mini clamps are each furnished with the hardware shown above. Each box also includes a bit tip for tightening setscrews using an electric screw gun. A structural aluminum attachment clamp, the S-5-E is compatible with most common metal roofing materials excluding copper. All included hardware is stainless steel

$279.00

Installation

Installation is as simple as placing the clamp on the seam and tightening the patented round-point setscrews to the specified tension. Then, affix ancillary items using the bolt provided. Thanks to our patented round-tip setscrews, S-5! clamps do not pierce metal roof paneling, thereby protecting  roof coatings and weather tightness warranties.

S5E-installSteps

Please note: The above image illustrates the S-5-E. The steps remain the same for the S-5-E Mini; however, there will only be one setscrew on the clamp.
