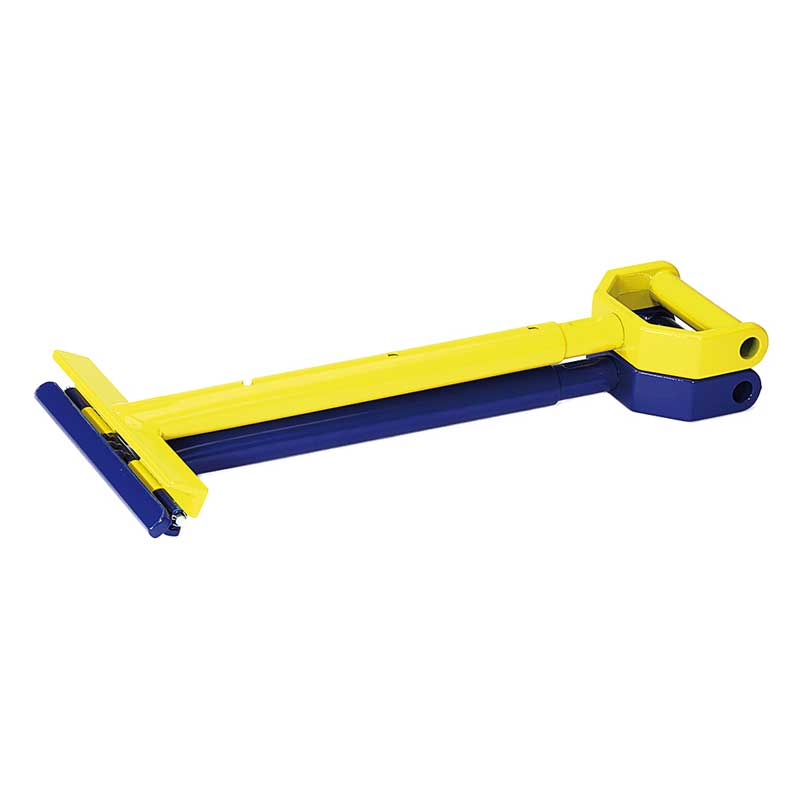

Rau 128, Single-Lock Hand Seamer

$375.00

  • ”Stand up” version of the RAU111 model
  • Ease of operation – The tool completes the 1st bend in locking the leg on the standing seam
  • Bends up to 24 gauge metal
  • Designed to be used standing-up, on low pitch or flat roofs
  • Cannot be used for vertical seams
  • Intended for use on seams 1/2” across, and 3/8” on the down leg
SKU: 91101000 Category:

Description

Working Length
in (mm)
Height
in (mm)
Width Depth
in (mm)
8 3/4" (220mm)28" (720mm)2 3/4" (70mm)
wfsch skizze 1

Pre-profiled sheet metal (SPM)

wfsch skizze 2

Profiles placed one inside the other

wfsch skizze 3 300x214

Angular standing seam, can be used from a
roof pitch of 25 ° (47 °)

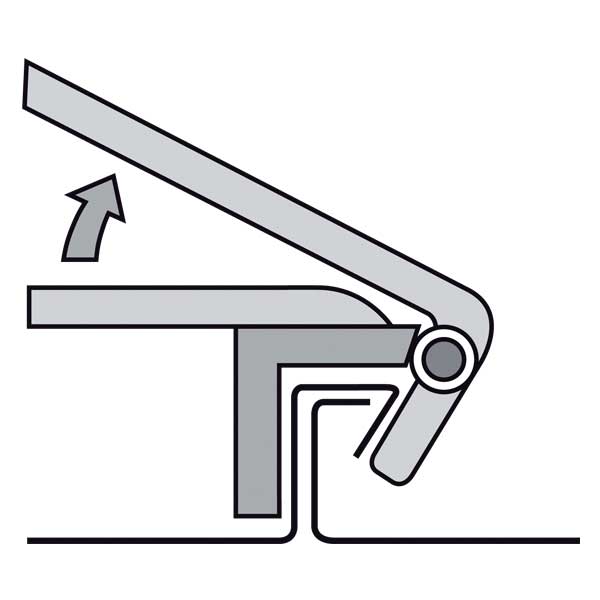

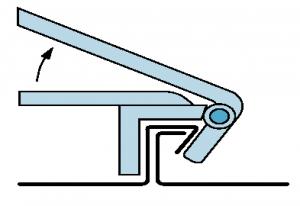

wfsch skizze 4 300x206

Close the profile with the WFSCH

Squareseam Folder

For smaller roof areas, it is worth pre-profiling to form an SPM profile, but closing by hand is more economical than closing with a machine. With the WFSCH ST, the angle fold can be closed easily, quickly, cleanly and effortlessly while standing. The handles can be adjusted in 3 lengths. This enables optimal use and transport.

Designed for small roof areas, it is efficient to use and can adjust to 4 different
lengths. 8.66" wide

wfsch st anwendung

System RAU

More than 60 years of experience speak for themselves

Our family company was founded in 1914 and is run by the fourth generation of the managing partners Dipl.-Ing. Franz Rau and M. Eng. Frederik Rau. With the production of sheet metal bending and processing tools since 1958, Rau GmbH traditionally has a great practical relevance. Since 1967, test devices for gas pipes for leak testing and measuring devices for leakage measurement have also been part of our products.

rau systems logo

Additional information

Weight 10 lbs
Dimensions 18 × 12 × 10 in
